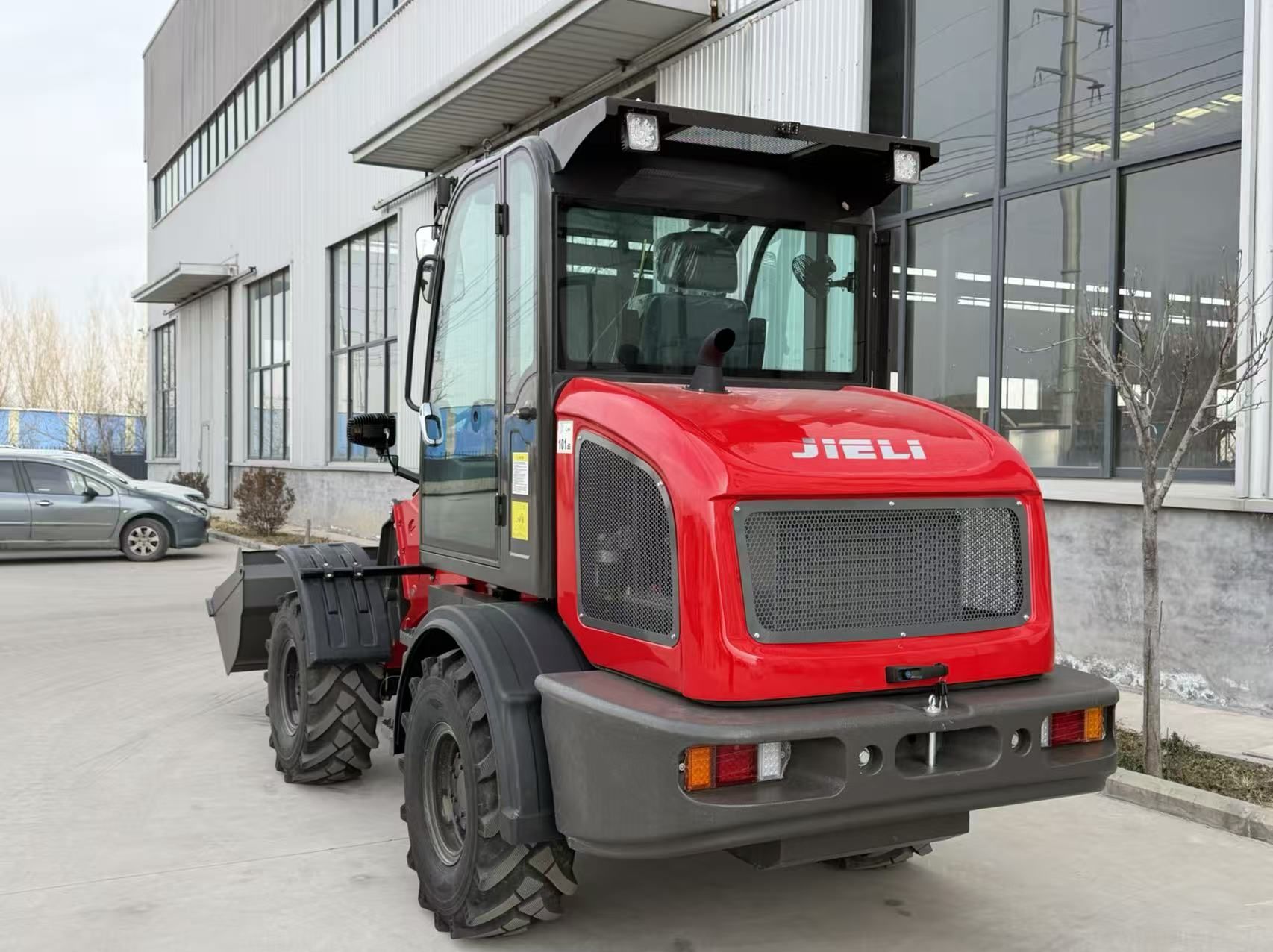

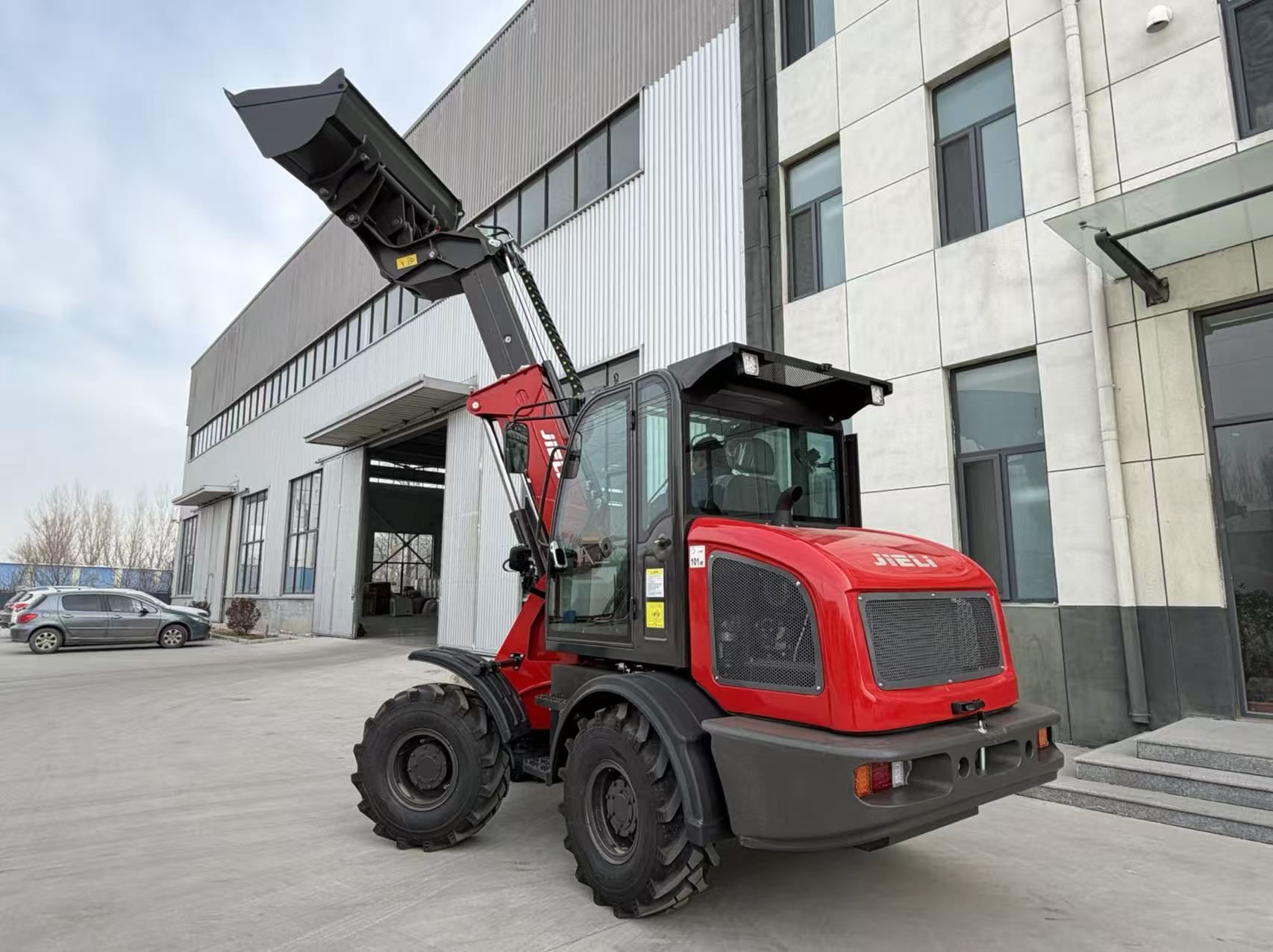

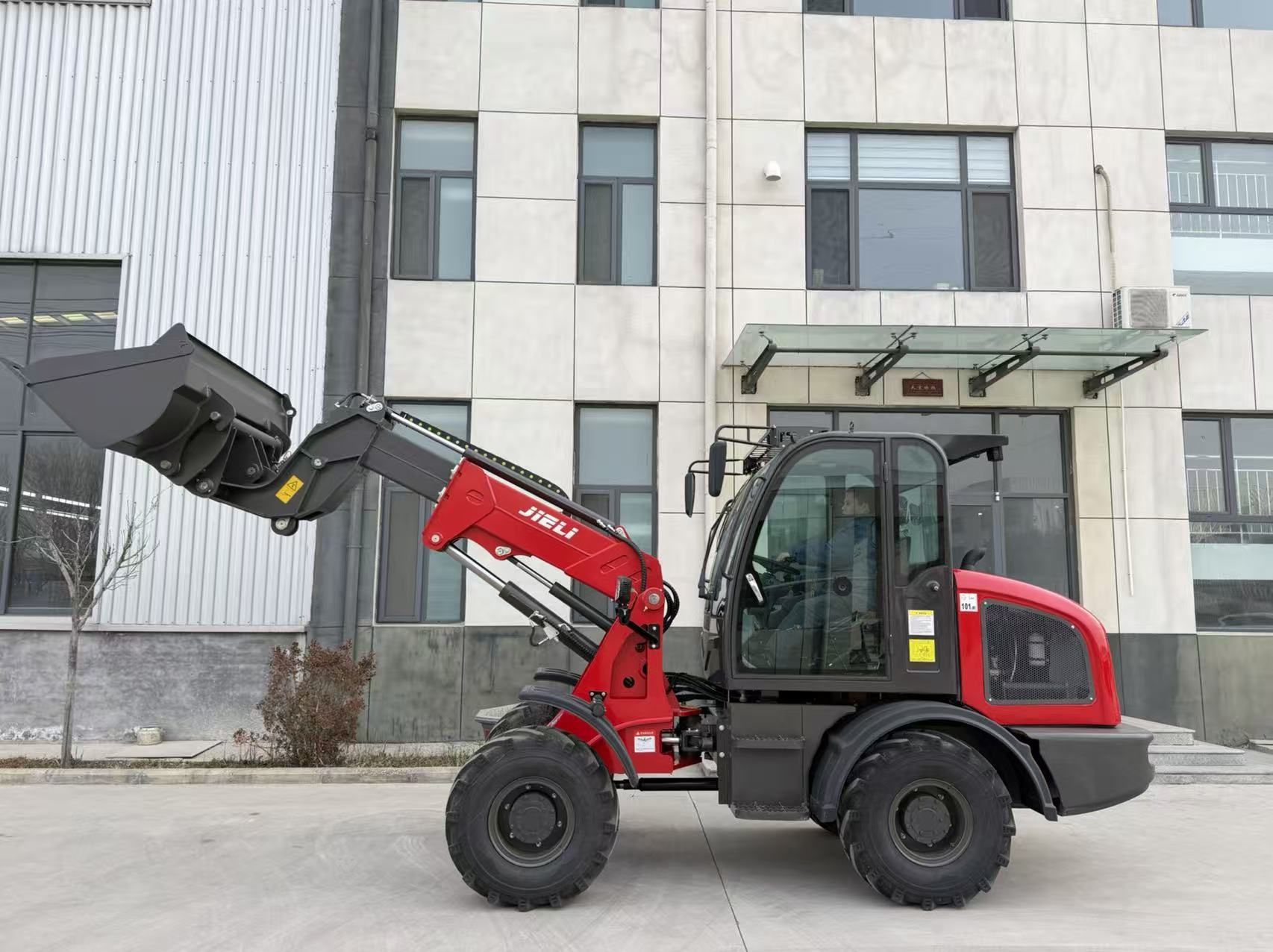

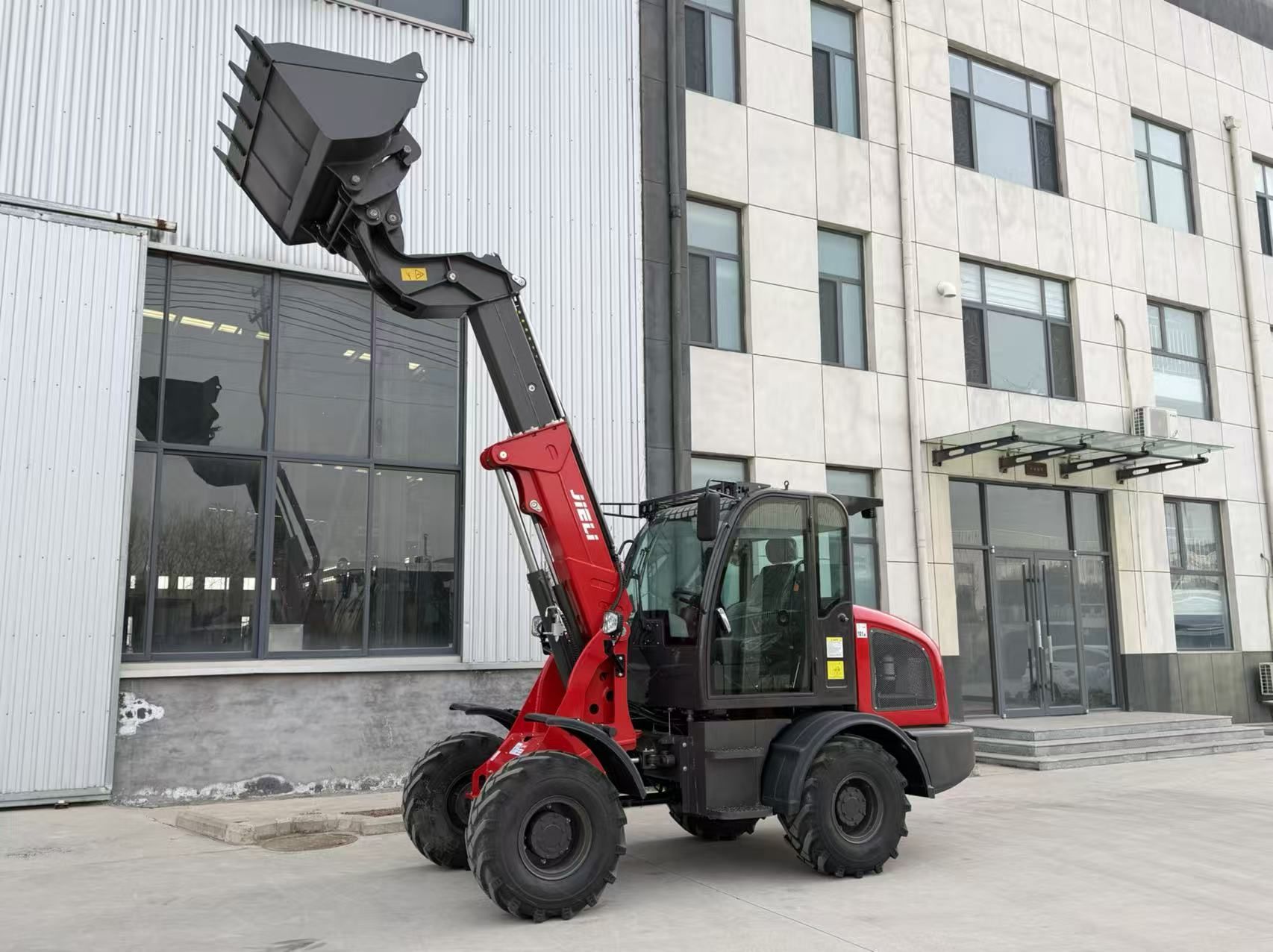

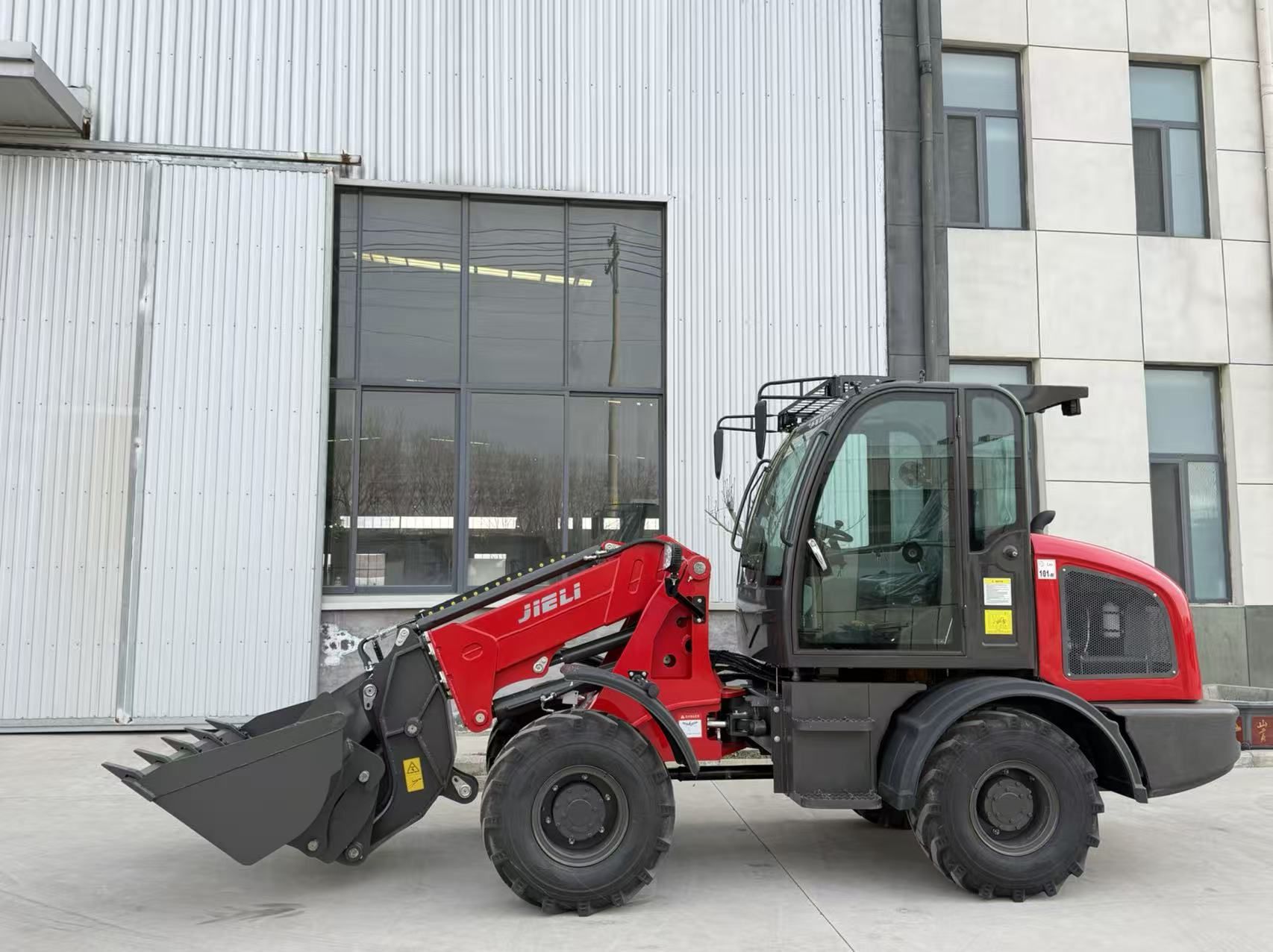

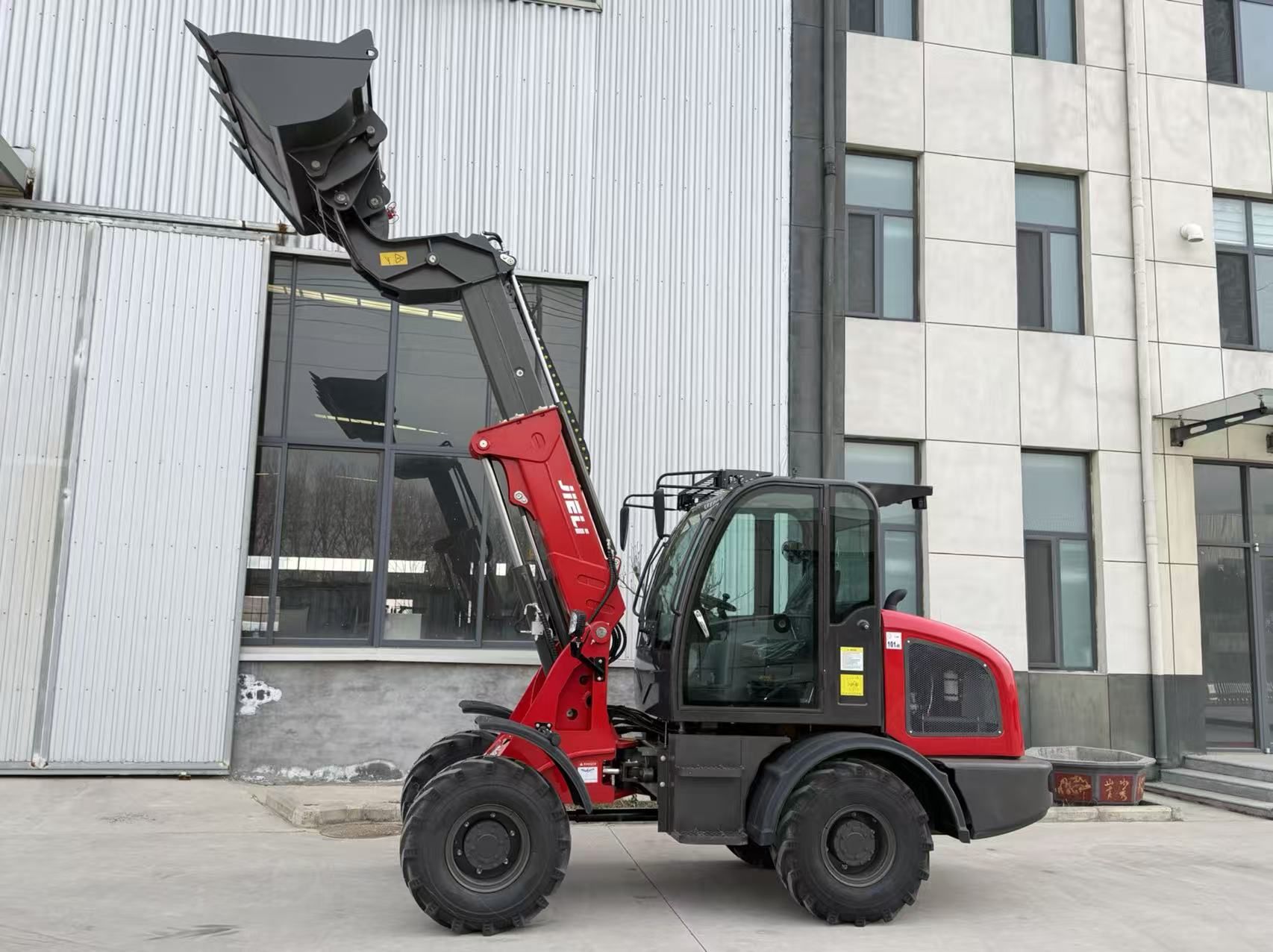

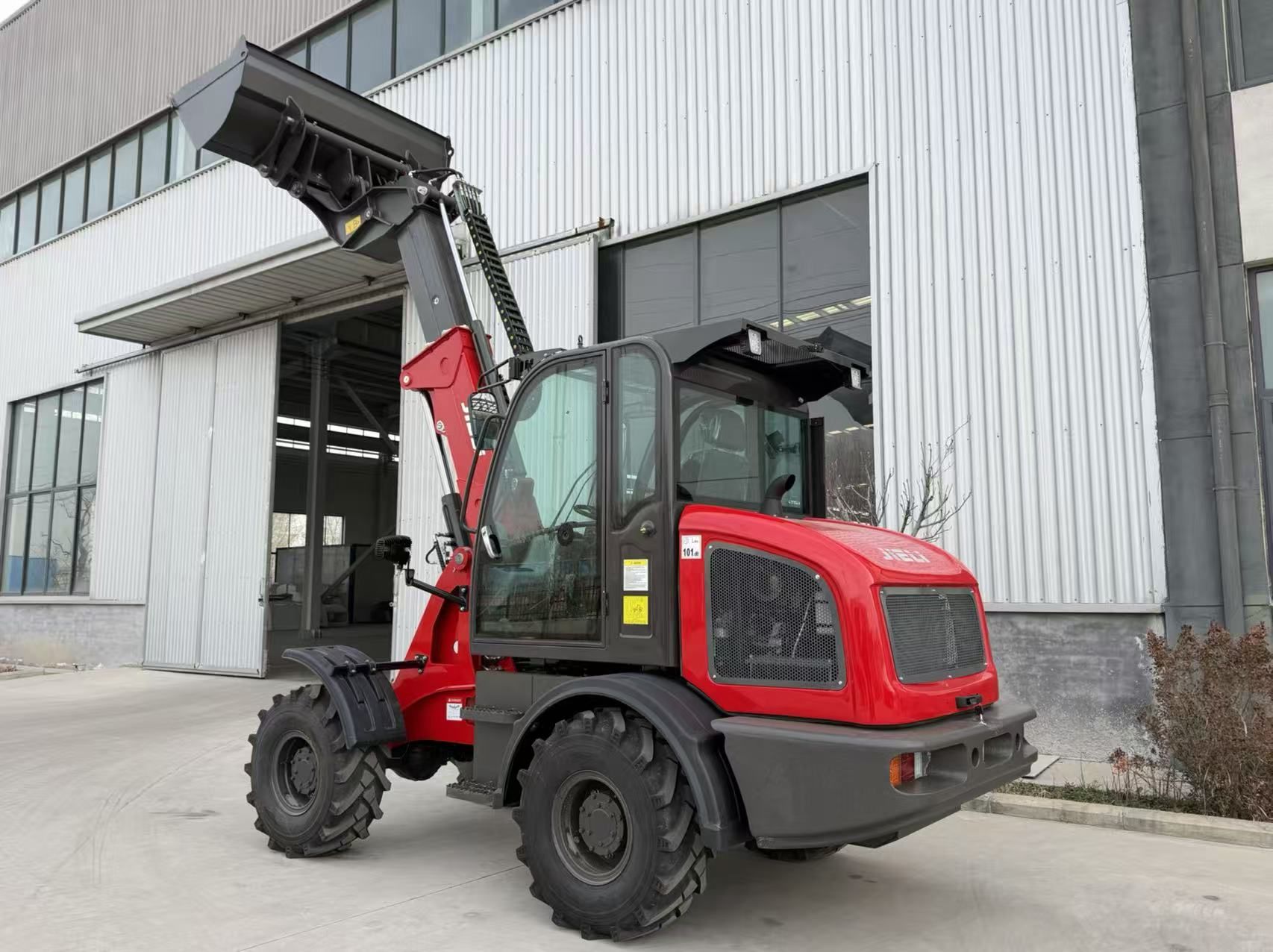

Telescopic Loader JL15T

With the articulated pendulum joint, all four wheels maintain traction even on uneven terrain. This increases the productivity of the machine and gives the driver optimal control.

INQUIRE NOW

Features

Specification

Related Products

Features

Maximum traction through articulated pendulum joint

• With the articulated pendulum joint, all four wheels maintain traction even on uneven terrain. This increases the productivity of the machine and gives the driver optimal control.
The optimal ratio of articulation and oscillation angle ensures a high level of grip on the ground. This makes the machine easy to maneuver.

Specification

Standard configuration:

Xinchai498 EURO3, 36.8kw,the big cab like the pic, rear open engine cover, 23.5/70-16 tire,4-HYDRAULIC joystick, Electric quick hitch, forward and rear, high and low speed, all be controlled by electric, rearview camera, ELECTRICAL TELESCOPIC ARM, electric 4WD, Hydraulic torque converter drive (2 forward, 2 backwards), full automatic, standard bucket (0.9m3), adjustable instrument, Adjustable seat, disc brake system, engine preheating heater, bucket can be level automatic, waterproof plug-in, back sound, radio, fan, extinguisher, window hammer, 220v engine heater, lifting height with fork is 4300mm, dump height is 3800mm, speed30km/h, The tipping angle of the bucket is 40, lifting capacity is 1800kgs, operation weight is 5680kgs,Free service spare parts

Specification of telescopic loader JL15T

Performance	rated loading (kg)			1600kgs
	overall weight (kg)			4680kgs
	rated bucket capacity (CBM)			0.9
	most lift height（mm）			4060
	maximum dump height（mm）			3390
	overall dimension (L×W×H) （mm）			471018102550
	minimum turning radius（outside of wheels）（mm）			3650
Engine	Model	XINCHAI EURO3/YUNNEI EURO V/YAMMAR EURO V/ KOHLER EURO V/Fiat EURO V /CUMMINS EPA 4
	type			lnline water cooled, four stroke
	No. of cylinder-bore/stroke （mm）			4-102×118
	min fuel-consume ratio			≤230g/kw.h
Transmission system	gearbox mode			Power shift normally engaged straight gear
	maximum speed			30-38km/h
Drive axles	main reducing mode			Hub reduction axle
	wheel base (mm)			2100
	wheel tread(mm)			1900
Brake system	parking brake		Air-assist hydraulic brake, disc brake
	parking brake			Manual disc brake
Tyre	type specification			23.5/70-16
	front tyre pressure （kPa）			350
	rear tyre pressure （kPa）			350

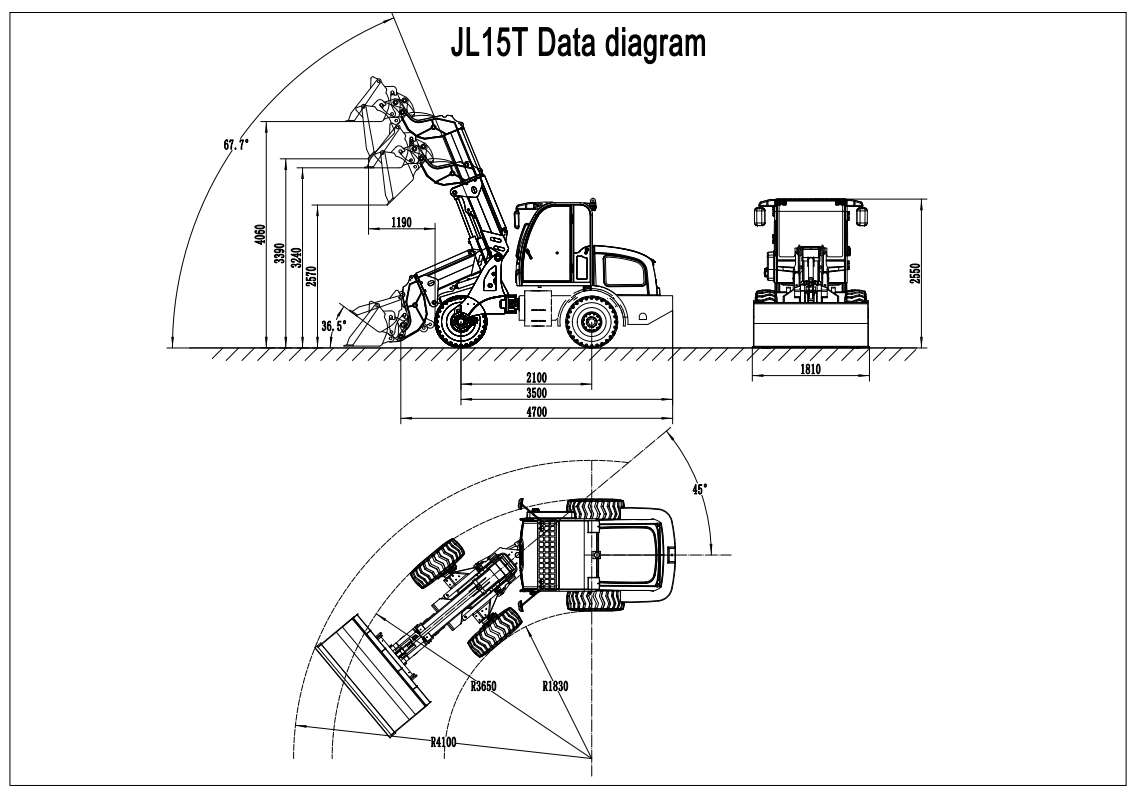

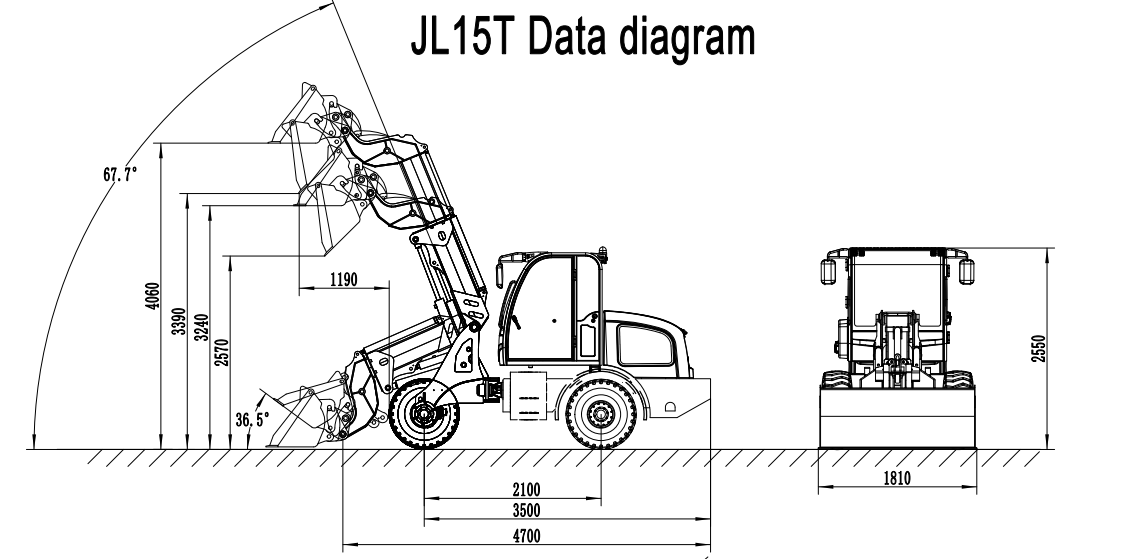

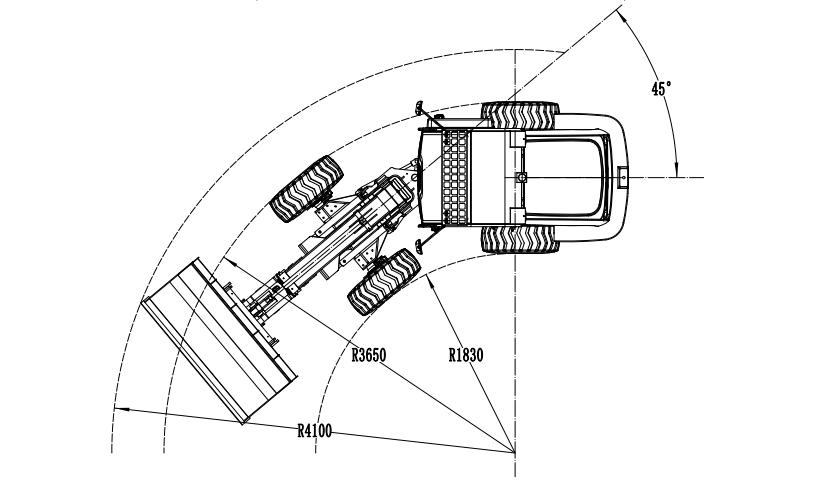

Data Diagram
